BLS276SV

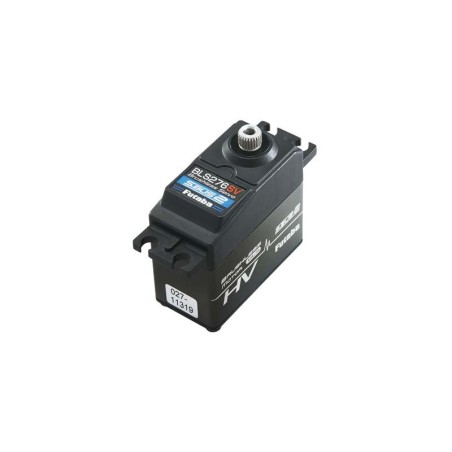

This is the Futaba BLS276SV High Voltage High Speed Heli Rudder Servo.

Compatible with the Futaba CGY750, GY701, GY520, GY430, GY611 and
GY601 gyros, cannot be used applications other than those listed
above or damage may occur
Brushless motor offers incredible holding power and 5X longer life
than servos equipped with brushed motors
SBUS 2 compatible
Dual ball bearing supported output shaft
One year limited warranty through the Futaba USA Service Center
beginning at date of purchase

BLS276SV Servo with 1.8" (45mm) Round Horn, 1.5" (39mm) four point
Horn, 1.2" (32mm) 6-point Horn, 3x8mm Servo Horn Screw, four each
Mounting Screws, Grommets, Eyelets, and Instructions

Neutral Pulse Width: 760us
6.6V 7.4V
Speed: 0.055 sec/60° 0.05 sec/60°
Torque: 61.12 oz/in (4.4 kg/cm) 69.45 oz/in (5.0 kg/cm)
Dimensions: 1.57 x 0.79 x 1.45" (40 x 20 x 36.8mm)
Weight 2.12oz (60g)
Power Supply: 6.0-7.4V

SBus Programmable Defaults
Dead Band Degree: 0.08
Damper Factor: 72
Stretcher Gain: 4
Boost: 10
Neutral Offset Degree: 0
Travel Adjust Percentage: 100%
Reverse (Normal/Reverse): Nor
Stop Mode (Free/Hold): Hold
Buzzer (On/Off): Off
Smoother (On/Off): On
Boost (On/Off): Off
Soft Start: 3.0

Do not connect this servo directly to a receiver. Always connect to a
gyro.
